SMA FEMALE CRIMP RG 58 CONNECTOR
SMA FEMALE CRIMP RG 58 CONNECTOR

B2-SH.YW.014

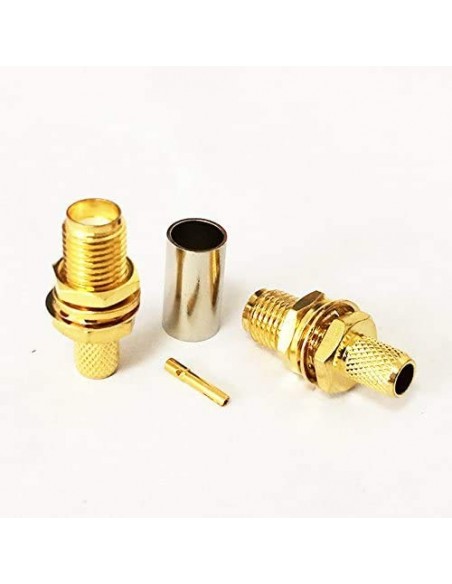

SMA FEMALE CRIMP RG 58 (B2-SH.YW.014)

SMA TYPE 50 OHMS CRIMP FEMALE CONNECTOR SUITABLE FOR RG-58 CABLE.

Description

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range DC-11 GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance ≥ 1500 MΩ
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Clamp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 150N min
Weight 35.9g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Product Details
