Belden 3105A
Conductor Count: 1 Pair
Conductor Material: Tinned Copper
Conductor Size: 22 AWG
Conductor Type: Stranded Conductor
Fire Rating: General Purpose
Insulation Material: FHDPE
Jacket Material: PVC
NEC Rating: UL LISTED ART 800
Screen/Shield Type: Braid Over Foil Shield
Screen/Shield: Yes
Shield Construction: Braid/Mylar/Braid Overall Double Braid
3105A
BELDEN 3105A

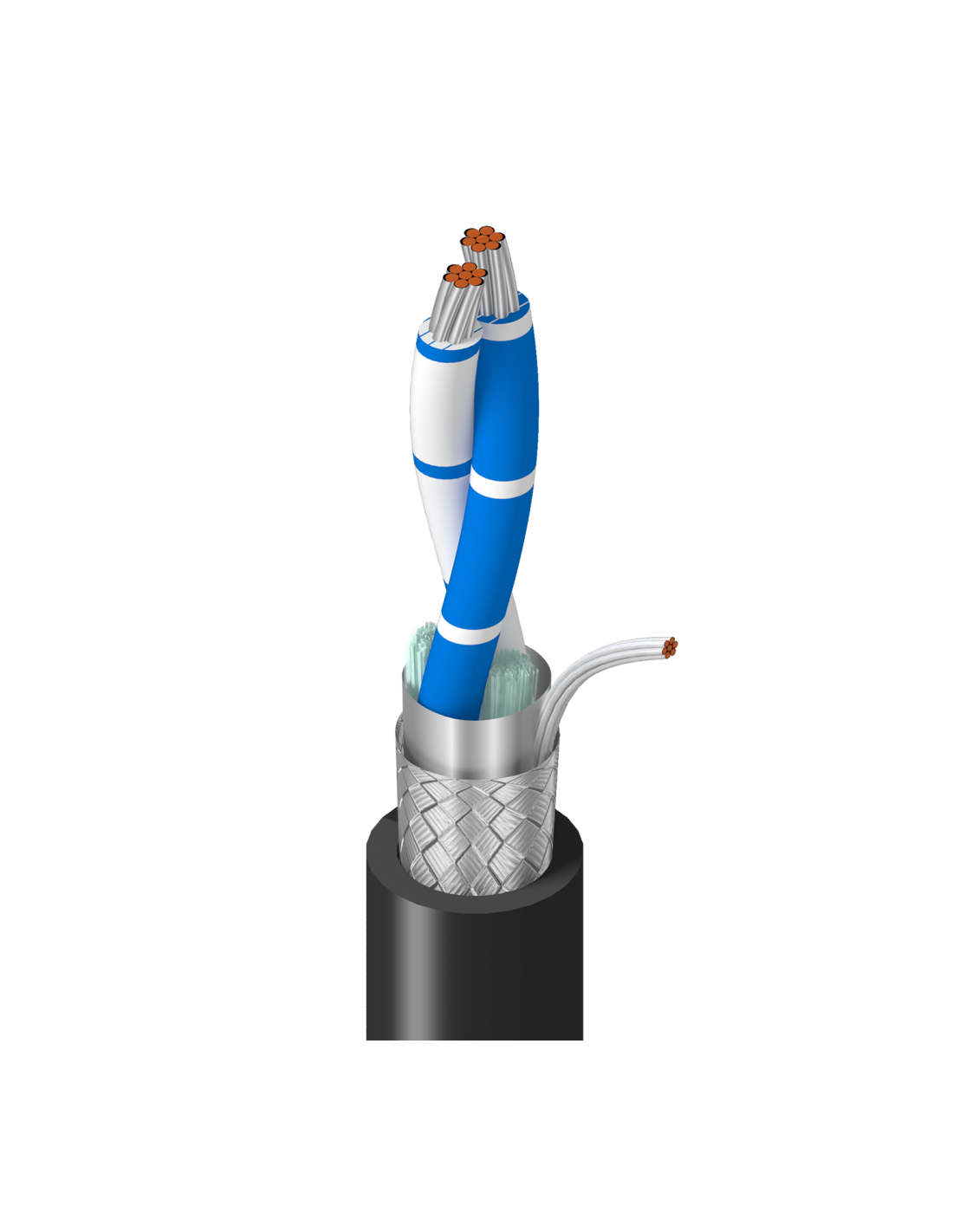

The Belden 3105A is a 1-Pair Shielded Cable with 22AWG stranded tinned copper conductors and Datalene® foam polyethylene insulation. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
Description
Product Details
About Belden Cable
Belden Incorporated is an American manufacturer of networking, connectivity, and cable products. The company designs, manufactures, and markets signal transmission products for demanding applications.
