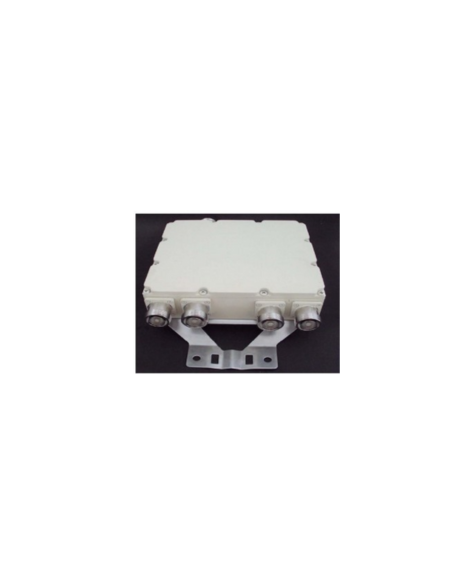

CSG 182690 CG-D-U-LTE-QDIN

Name: CSG 182690 CG-D-U-LTE-QDIN
Brand: CSG
SKU: Customized filters/duplexers/combiners

Reference Customized filters/duplexers/combiners

CDMA & GSM/DCS/UMTS/LTE Quadplexer, From the House of CSG

Freq.Band
(MHz)

Insertion loss
(dB)

Band Ripple
(dB)

Isolation
(dB)

Connectors

Return loss
(dB)

Z
(Ω)

Power(watt)

Dimensions (HxWxD)mm

806~960

≤0.2

≤0.4

≥70@1710~1880 MHz
≥70@2110~2170 MHz
≥70@2500~2690 MHz

DIN(F)

≥18

250

55x210x202

1710~1880

≤0.5

≥70@806~960 MHz
≥65@2110~2170 MHz
≥70@2500~2690 MHz

1920~2170

≤0.5

≥70@806~960 MHz
≥65@1710~1880 MHz
≥70@2500~2690 MHz

2500~2700

≤0.5

≥70@806~960 MHz
≥65@1710~1880 MHz
≥70@2110~2170 MHz
