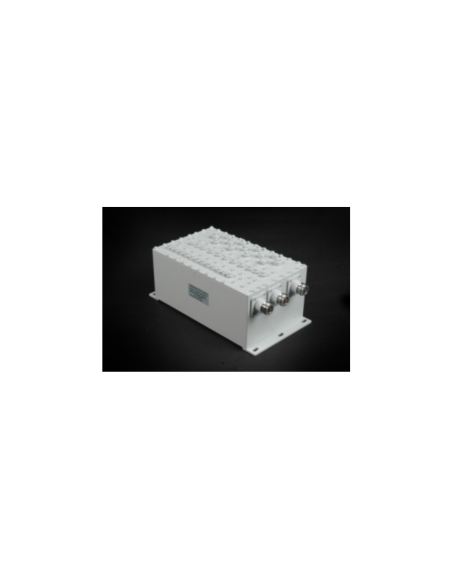

CSG 1492100 TNX, 100 Watt Combiner
CSG 1492100 TNX, 100 Watt Combiner

CSG 1492100 TNX

Customized filters/duplexers/combiners

TETRA/GSM/UMTS Triplexer Combiner, 100Watt, N Female Connector

Description

Freq.Band
(MHz)

Insertion
loss(dB)

Band Ripple
(dB)

Isolation
(dB)

Connectors

Return loss
(dB)

Z
(Ω)

Power
(watt)

Dimensions (HxWxD)
mm

Port1 : 380~400

≤0.5

≤0.3

≥80@ Port1
≥80@ Port2
≥80@ Port3

N(F)

≥16

50

100

88x210x112

Port2 : 800~960

Port3 : 1700~2170
