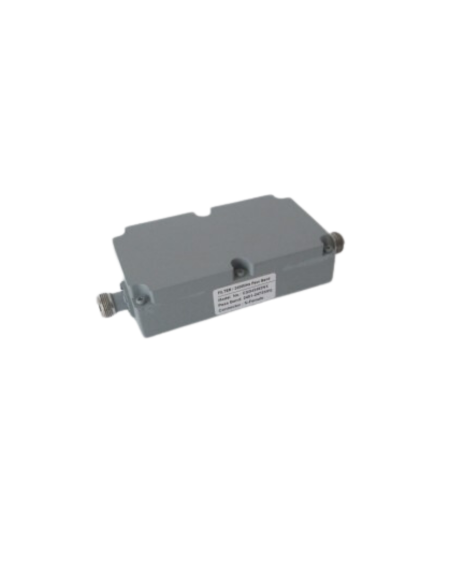

CSG 42400 NX Channel 1, 6 & 11

Reference Customized filters/duplexers/combiners

2400MHz Band Filters, 50Watts, N Female Connector

Freq.Band (MHz)	Insertion loss(dB)	Ripple (dB)	Rejection (dB)	Connectors	Return loss (dB)	Z (Ω)	Power (watt)	Dimensions (HxWxD) mm
CH1 : 2412 CH6 : 2437 CH11 :2462	≤0.3	≤0.80	≥60	N(F)	≥15	50	50	31x124x73
